POSITIVE DISPLACEMENT PUMPS - LOBE/ROTOR PUMPS

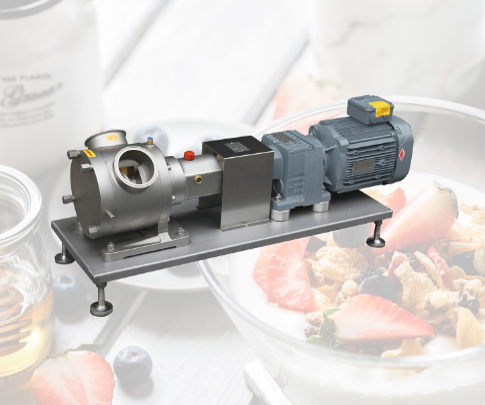

High standard sanitary rotor pump is a rotary positive displacement pump developed and manufactured by Shanghai Yuanan in 1999, which can be used to transport low, medium and high viscosity products. It integrates the most advanced sanitary design concept and can meet the increasing requirements of different customers for hygiene and cleanliness. After nearly 20 years of continuous updating and improvement, as well as the steady improvement of domestic metallurgy and manufacturing technology, it is now updated to the latest YAR model with better performance and longer service life. Features Cooperate with heavy-duty bearing frame and high-pressure imported bearings to ensure higher pump efficiency and longer service life. Pre-balanced mechanical seal, the machine seal is fully lubricated and has a longer life. Fully compliant with online CIP and SIP, compliant with USA 3A cleaning standards and European sanitary equipment EHEDG. Shanghai Yuanan YAR high standard health rotor pump has become one of the first choice of global customers.

  • Mainly to convey higher viscosity materials
  • Pump body material: SUS304, SUS316L
  • Usage flow rate: 1 m³/h-100m/h
  • Outlet pressure: up to 12bar
  • Maximum viscosity: 500000 CP

Low shear sine pump

YSP series pumps are specially designed and developed by our company for customers. The characteristic is that YSP series pumps completely change the concept of traditional positive displacement pumps. The traditional positive displacement pump has pulse fluctuation when conveying materials, which causes the pump and pipeline system to vibrate. Sine pump due to the use of its impeller shaped like a sine wave of the sine surface, the impeller in the pump body, the sine surface of the impeller to create four alternating moving working chamber, so that there is no pulse fluctuation when conveying materials, thereby reducing the vibration of the pump and piping system. The special sine surface design of the impeller, the shear of the material is reduced to a minimum, especially suitable for the conveying of sensitive materials. In addition to the material contains larger particles, but also for the particles are not squeezed, shear damage, sine pump is the best choice. The pump shaft of our company uses special stainless steel, which has high strength, hardness and strong corrosion resistance. The two materials are not easy to bite in high-speed operation, and are easy to disassemble during subsequent maintenance. YSP series pump design structure is simple, easy to disassemble, fully meet the online CIP or SIP, replace any part of the pump body only ten minutes to complete.

  • Material: 304 (1.4301), 304L(1.4306), 316L(1.4404)
  • Scope of application: flow rate: ≤ 30m ³/h viscosity: ≤ 500000 CP
  • Maximum temperature resistance: 180 ℃ (water cooling chamber shall be installed)
